PR001 - Inductive Wheel Probe

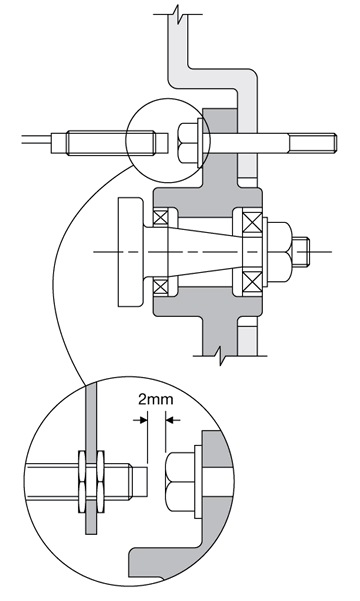

The inductive wheel probe works by detecting the presence of metal as it is brought near the end of the sensor. It is typically fitted to a vehicle's wheel hub so that it senses the back of the wheel studs or other metal detection targets as they rotate past. In this way, it can be used to measure speed and distance on a wide variety of vehicles.
Technical Specifications
| Sensing Distance | 1-2mm |
| Max. Detection Frequency | 500Hz |
| Operating Temperature | -25 to +75 deg C |
Support Documents
